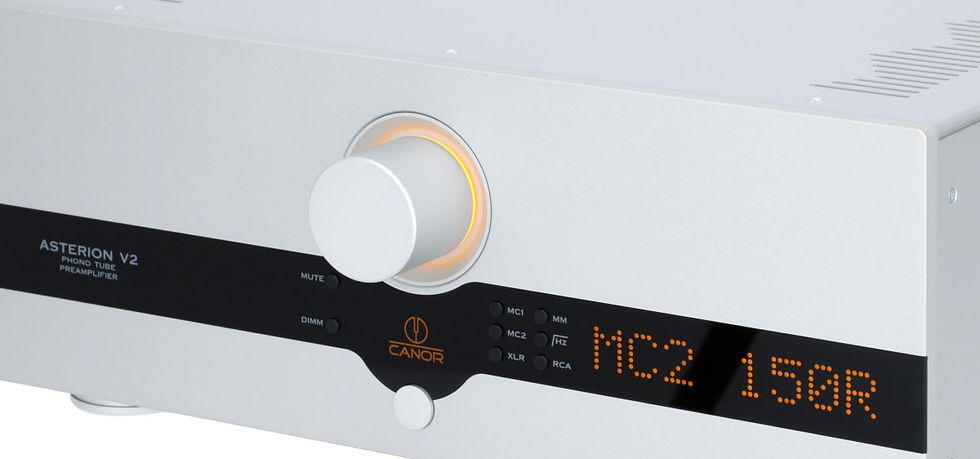

The CANOR Asterion V2 stands out as a top-of-the-line preamplifier for turntables, employing all-tube technology to deliver unparalleled performance. It's designed to work seamlessly with both MM and MC phono cartridges, making it a versatile choice for audiophiles who demand the best.
Highlights
A legitimate balanced XLR input and output, with true differential circuitry
All-tube turntable preamplifier that works with both MM and MC phono cartridges
Precise selection and matching of tubes with exceptional parameters
Product Features
an all-tube turntable preamplifier for both MM and MC phono cartridges
nine tubes, one vacuum tube out of them used to rectify anode voltage
wiring circuitry without any global feedback
PCB’s utilize our premium CMT ™ technology
precise selection and matching of the tubes that have above-average parameters
vacuum-impregnated transformer core
transformer potted in a special anti-vibration compound and placed in the massive welded cover
the exceptional high-quality polypropylene capacitors in the signal path were used
if a turntable is fitted with two tonearms, one having an MM phono cartridge installed and the other MC, both can be connected simultaneously without mutually affecting each other
high variability of gain settings, resistances and capacitances settings for all types of phono cartridges
a high-quality step-up Lundahl transformer for MC phono cartridges
Specifications
Load Capacity MM / Gain
50, 150, 270, 370, 520, 620, 740, 840pF / Gain: 46dB
Input Impedance MC1 / Gain
10, 20, 40, 80, 150, 300, 600, 1200Ω / Gain: 70dB
Input Impedance MC2 / Gain
2, 5, 10, 20, 40, 80, 150, 300Ω / Gain: 76dB
Output Impedance
RCA: <300Ω
XLR: <600Ω
Inputs
XLR > MC: RCA > MM / MC
Outputs
RCA / XLR
Total Harmonic Distortion
MM / MC <0.1% / 1V RMS
Subsonic Filter / Threshold Frequency
18dB / Octave / 18Hz
RIAA Accuracy
0.3dB / 20Hz - 20kHz
Signal-to-noise Ratio MM
<72dBV (87dBV - IEC - A)
Signal-to-noise Ratio MC
<68dBV (82 dBV - IEC - A)
Tube Complement
8x 6922EH, 1x 6CA4EH
Power
230V / 50Hz / 70VA
Dimensions (WxHxD)
435 x 170 x 485mm
Weight (net)
18kg
