State‑of‑the‑art streaming and expert preamplification in one uncompromising component
Works with Apple® AirPlay®, Bluetooth®, Google Cast™, Qobuz Connect, Spotify® Connect, TIDAL® Connect
Roon Ready and Roon Tested
12 analog and digital audio inputs
HDMI (ARC) input for enhanced TV audio performance
Multiple balanced and unbalanced outputs with subwoofer connectivity options
Quad Balanced 8-channel, 32-bit DAC
Elevated chassis materials: polished stainless steel and hairline brushed black Titanium stainless steel

EVERYTHING CONNECTS

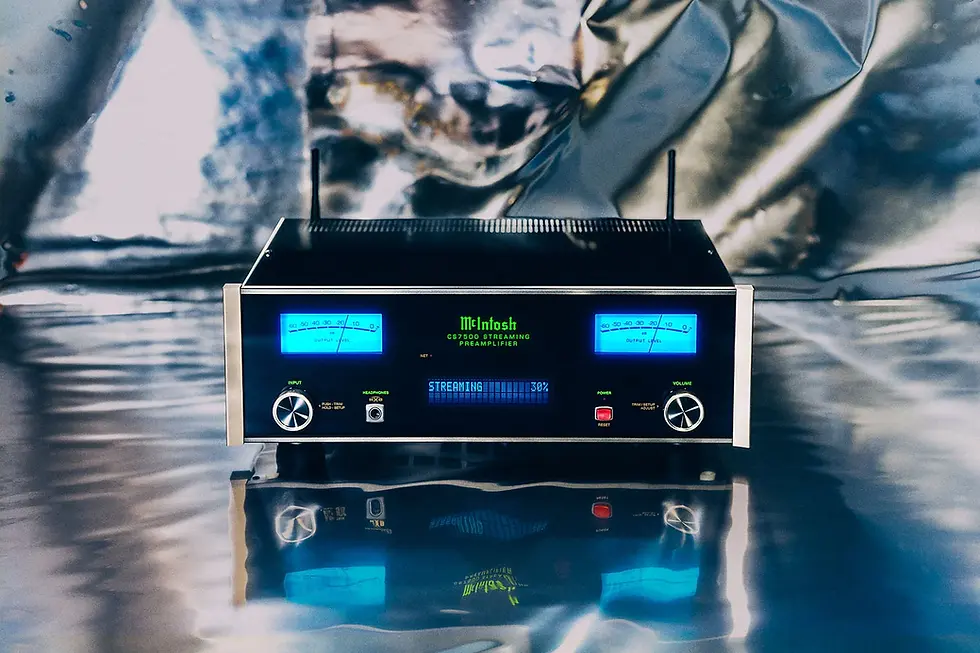

The CS7500 Streaming Preamplifier brings together state‑of‑the‑art streaming and expert preamplification in one uncompromising component – combining the roles of a dedicated preamplifier and network streamer in an unmistakable McIntosh design. Serving as the centerpiece of your system, the CS7500 lets you choose the power amplifier that best suits your needs today while providing the freedom to grow and refine your system over time.

Whether rediscovering a classic or streaming something entirely new, the CS7500 ensures each listening session feels intentional and connected – between artist, system, and listener. Every detail, every part, every element of its design exists to preserve what matters most: music's ability to move, inspire, and connect us.

CONNECTED TO EVERYTHING THAT MOVES YOU
Streaming is more than just convenience, it’s about connection – connection to the world, to music, to culture. The CS7500 integrates modern digital ecosystems with effortless precision, giving you instant access to the music that moves you without sacrificing fidelity.

Built-in support for Qobuz Connect, Spotify® Connect (including Spotify Lossless), and TIDAL® Connect (including TIDAL Max) allows music to stream directly from each service to the CS7500. This direct connection bypasses your phone or smart device and avoids unnecessary audio compression, ensuring that the highest available audio signal reaches your system. Your smart device becomes a simple, intuitive remote control, with no need for additional complex apps – just use the Connect option in the native Qobuz, Spotify, or TIDAL app interfaces you already know.1, 2 In addition, music stored on your devices can be streamed via Apple® AirPlay®, Bluetooth®, or Google Cast™, bringing all of your streaming sources together in one cohesive platform.

Streaming over Bluetooth is elevated through a suite of advanced technologies engineered for performance. The CS7500 supports high-bitrate Advanced Audio Coding (AAC), along with Qualcomm® aptX™ HD for high-resolution playback, and Qualcomm aptX Adaptive for consistently stable, high-quality streaming.

The CS7500 has received Roon Ready certification from Roon, making it an endpoint device for use with the Roon music player. Roon Ready network devices have Roon streaming technology built in and are certified by Roon to provide the highest level of quality and performance in network streaming. It has also received Roon Tested certification to ensure simple setup and effortless daily use.

BUILT TO BRING EVERYTHING TOGETHER
A comprehensive suite of physical inputs ensures seamless integration with your audio system. The CS7500 features 6 analog inputs consisting of 2 balanced, 3 unbalanced, 1 dedicated phono input for turntables, plus 7 digital audio inputs. Each digital input is engineered for high-resolution playback – the USB input supports native DSD512 and DXD up to 384kHz, while the coaxial and optical inputs handle up to 24-bit / 192kHz, delivering exceptional fidelity across formats.

Specifications
Electronic Specifications
Number of Channels
2
Total Harmonic Distortion
0.005%
Frequency Response
+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz
Maximum Volts Out (Balanced / Unbalanced)
16V RMS / 8V RMS
Sensitivity High Level (Balanced / Unbalanced)
900mV / 450mV
Sensitivity Phono
Moving Coil: 0.45mV
Moving Magnet: 4.5mV
Signal To Noise Ratio (High Level)
100dB
Signal To Noise Ratio (Phono)
Moving Coil: 80dB
Moving Magnet: 82dB
Voltage Gain (High Level)
15dB
Voltage Gain (Phono)
Selectable 40dB, 46dB, 52dB, 58dB, or 64dB
Input Impedance (Balanced / Unbalanced)
44K ohm, 22K ohm

Connectivity
Streaming Services
Apple AirPlay, Bluetooth, Google Cast, Qobuz Connect, Roon Ready, Roon Tested, Spotify Connect, Tidal Connect
Balanced Input
2
Unbalanced Input
3
Phono Input
1 (configurable as either Moving Coil or Moving Magnet)
Digital Coaxial Inputs
2
Digital Optical Inputs
2
Digital MCT Inputs
1
Digital USB Input
1
HDMI (ARC) Input
1
Balanced Variable Output
2
Unbalanced Fixed Output
1
Unbalanced Variable Output
2
Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
Input Level Match
Yes, +/- 6dB
Home Theater PassThru
Yes
Unbalanced Analog Connector Type
Standard
Service Port
1
Network Connections
1

Digital Audio Specifications
Digital-to-Analog Converter (DAC) Type
8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital MCT Input Sample Rate
16-bit/44.1kHz (CD)
DSD64 (SACD)
Digital USB Input Sample Rate
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
Digital Network/Wi-Fi Input Sample Rate
24-bit/44.1kHz to 192kHz

Control
Tone Controls
Bass and Treble
Tone Bypass and Input Assign
Yes
RS232 Control Inputs
Yes
Power Control Outputs
1 Main, 2 Trigger
Rear Panel Data Ports
4
Rear Panel IR Sensor Inputs
Yes

General Specifications
Multi-Chassis or Single
Single, two layer
Output Meters
Yes
Vacuum Tube or Solid State
Solid State
Power Consumption (On)
30 Watts

Weights & Dimensions
Unit Dimensions (W x H x D)
17.5" (44.45cm) x 6" (15.2cm) x 17” (43.2cm)
Unit Weight
25 lbs (11.3 kg)
Shipping Dimensions (W x H x D)
27" (68.6cm) x 12" (30.5cm) x 25" (63.5cm)
