FEATURES & DETAILS

  • BluOS Streaming DAC Amplifier

  • Second-Generation HybridDigital Purifi Eigentakt™ Amplifier Technology

  • Rated Output Power: > 200W into 8 ohms, > 380W into 4 ohms

  • Dynamic Power: 280W into 8 Ohms, 560W into 4 Ohms

  • ESS Sabre ES 9039PRO DAC

  • Dirac Live Room LE Correction

  • Optional Dirac Live Full Bandwidth and Bass Control (licenses sold separately)

  • Colour LCD touch display

  • Supports Amazon Alexa

  • AirPlay 2 Integration

  • Supports Siri voice assistant via AirPlay 2

  • Two-way Qualcomm aptX® HD Bluetooth

  • Gigabit Ethernet

  • Dual Band Wi-Fi 5 a/c/n

  • HDMI eARC, USB Type A input

  • MM/MC phono stage with infrasonic filter

  • Line level input

  • Balanced (XLR) input

  • 2 x Optical input

  • 2 x Coaxil input

  • Balanced (XLR) PRE OUT

  • Single-ended PRE OUT

  • Subwoofer outputs, with selectable crossover frequency

  • High-current headphone amplifier

  • 2 x MDC Slots for future expansion

  • IR input

  • 12V Trigger IN/OUT

  • Apps for iOS, Android, macOS, Windows

  • Works with leading smart home systems, including Control4, Crestron, iPort, Josh.ai, KNX, Lutron, Nice, RTI , and URC

  • Wide variety of premium music services supported in app, including Amazon Music HD, Spotify, Tidal, Qobuz, TuneIn, Napster, Deezer, and many others



Specifications

AMPLIFIER SECTION

LINE IN, SPEAKER OUT

  • Rated output power (ref. 20 Hz-20 kHz at rated THD, both channels driven)

  • >380 W into 4 ohms >200 W into 8 ohms

  • Rated output power, Bridge mode (ref. 20 Hz – 20 kHz at rated THD)

  • >700 W into 8 ohms

  • Input sensitivity

  • 1.5 V (200W 8 ohms, Volume maximum)

  • THD (20 Hz – 20 kHz)

  • <0.003 % (1W to 200 W, 8 ohms and 4 ohms)

  • Signal-to-Noise ratio

  • >98 dB (A-weighted, 1 W out in 8 ohms) >120 dB (A-weighted, 200 W out in 8 ohms)

  • Clipping power

  • >210 W (0.1 % THD 1 kHz 8 ohms)

  • IHF dynamic power

  • 4 ohms: 560 W 8 ohms: 280 W

  • Peak output current

  • ≥25 A (0.1 ohm, 1 mS)

  • Damping factor

  • >800 (8 ohms, 20 Hz to 6.5 kHz)

  • Frequency response

  • (20 Hz -20 kHz) ±0.2 dB



PREAMPLIFIER SPECIFICATIONS

LINE IN/BALANCED IN

  • Input Impedance (R and C)

  • 53 kohms/280 pF

  • Input Sensitivity

  • Line IN: 460 mV (500 mV out, Volume maximum) Balanced IN: 250 mV (500 mV out, Volume maximum)

  • Maximum input level

  • 3.5 Vrms

  • Tone Controls

  • Treble: ±6 dB at 15 kHz Bass: ±6 dB at 40 Hz



PREOUT

  • Maximum output level

  • SE OUT: 3.6 Vrms (0.1% THD) Balanced OUT: 7.6 Vrms (0.1% THD

  • Signal-to-Noise ratio

  • >120 dB (A-weighted, 2 V out)

  • Output impedance

  • Source Z + 49.9 ohms



SUB OUT (1 SUBWOOFER, 2 SUBWOOFERS)

  • Maximum output level

  • 3 Vrms (0.1 % THD 100Hz)

  • Signal-to-Noise ratio

  • >>88 dB (20 Hz-20 kHz 1V out)

  • THD+N

  • <0.005 % (20 Hz-200 Hz 3V)

  • Output impedance

  • Source Z + 220 ohms



PHONO

  • Input sensitivity (500 mV out Volume maximum)

  • MM: 5 mV MC: 370 µV

  • Input impedance (R and C)

  • MM: 25.6 kohms/180 pF MC: 100 ohms/280 pF

  • Signal to noise ratio (A-weighted, 500 mV PRE OUT 1 kHz)

  • MM: >93 dB MC: >73 dB

  • THD+N (500 mV PRE OUT 1kHz)

  • MM: <0.003 % MC: <0.03 %

  • RIAA response accuracy MM/MC

  • (20 Hz -20 kHz) ±0.2 dB



HEADPHONES

  • Output Impedance

  • Source Z + 3.3 ohms

  • Output power

  • >300 mW/32 ohms



BluOS SPECIFICATIONS

AUDIO

  • Supported audio file format*

  • MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

  • Supported high- resolution audio file format*

  • FLAC, MQA, WAV, AIFF

  • Sampling rate

  • up to 192 kHz

  • Bit depths

  • 16 – 24



CONNECTIVITY

  • Network connectivity

  • Gigabit Ethernet RJ45 Wi-Fi 5

  • USB

  • 1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals

  • Bluetooth quality

  • aptX® HD 5.0

  • Bluetooth connectivity

  • Two-Way (Receive and Headphone modes)



USER INTERFACE

  • Supported operating system**

  • Music playback from network shares on the following desktop operating systems: Microsoft Windows 10 or higher and macOS 10.3 or higher**

  • Mobile Application

  • Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, and Windows or macOS desktops

  • Front panel

  • 7-inch full colour touch screen

  • Remote control

  • SRM 1 remote control



SUPPORTED SERVICES

  • Streaming cloud services*

  • Amazon Music, Bugs, Custom Channels, Deezer, IDAGIO, KKBOX, Napster, Neil Young Archives, nugs.net, Pandora, Presto Music, Qobuz, QPlay, Qsic, SOUNDMACHINE, Spotify, TIDAL, Tunify

  • Free internet radio*

  • Audacy, Calm Radio, iHeartRadio, LiveOne, Radio Paradise, SiriusXM, TuneIn

  • Integration partners

  • Control4, Crestron, ELAN, Lutron, Push, Roon, RTI, URC

  • Voice Control Integration

  • Skills and support for Amazon Alexa and Apple’s Siri with corresponding enabled devices and App



POWER CONSUMPTION

  • Standby power

  • <0.5W (Auto standby ON) <7W (Network standby) <40W (idle power)



DIMENSIONS AND WEIGHT

  • Dimensions WxHxD **

  • 435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8 ”)

  • Net Weight

  • 9.7kg (21.4lb)

  • Shipping Weight

  • 18.4kg (40.6 lb)

  • Shipping Size (W x H x D)

  • 569 x 258 x 519 mm (22 13/32 x 20 7/16 x 10 5/32 ”)

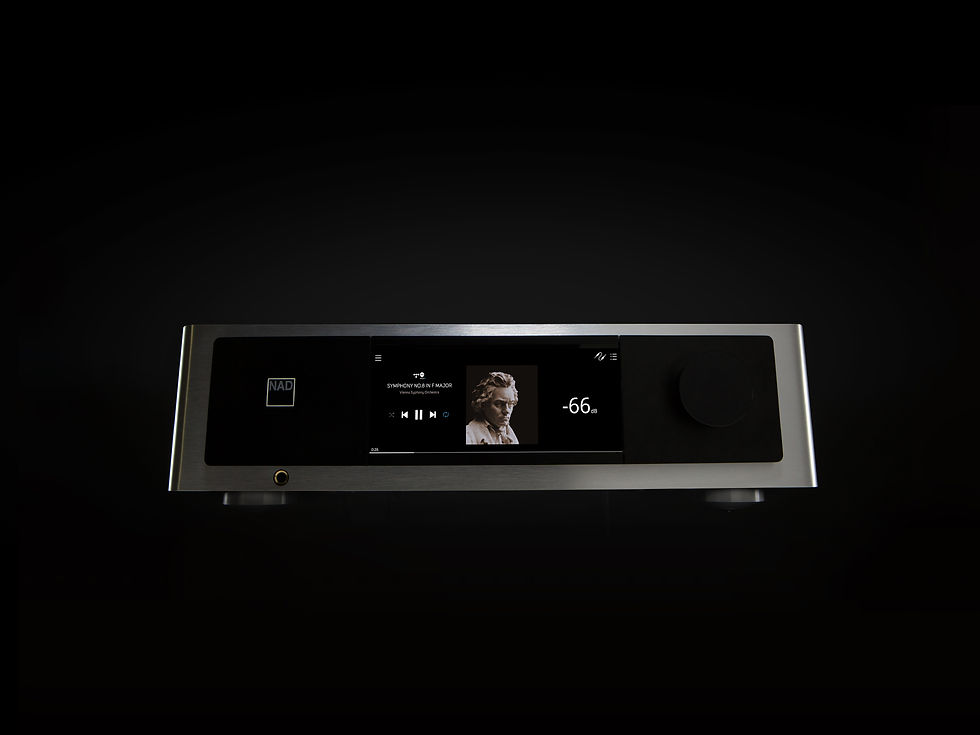

NAD M33 V2 | BluOS® Streaming DAC Amplifier

SKU: NADM33V2
$8,899.00Price
For items not currently in stock, estimated delivery is approximately 1–4 weeks. All sales are final.
